USA UL explosion proof certified
European CE certified
Equipped with 4th generation operating procedures
Accurate and routine grease injection maintenance
Resistant to sunlight, rain and all kinds of harsh environments
Guaranteed Lifespan of 5+ Years
 |
IP65 Dustproof and Waterproof Rating Certified |
|---|
 |

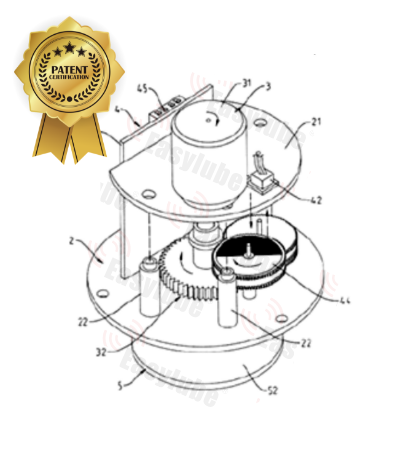

The patented grease feedback pressure monitoring system can ensure that grease is added systematically into the bearing for lubrication. |
|---|
 |
24-hour active monitoring, once the equipment is abnormal, it will immediately blink the warning light. |
|---|
 |
The lubricator self-test function can be used to confirm whether the driving system is operating normally or not. |
|---|
 |
The re-greasing interval can be set according to the bearing operating conditions to the range of 1-12 months |
|---|
| Product Number | EL-150C |
|---|---|
| Product Model | Easylube® 150 Classic |
| Outlet Diameter | 1/2" PT (M) |
| Grease Volume | 150 ml |
| Grease Interval Range | Adjustable from 1 to 12 months |
| Operating Environment Temperature Range | -20 ~ 60°C (-4 ~ 140°F) |
| Pressure Plate Thrust (Piston) | 75 - 150 psi (5 - 10 bar) Automatic adjustment according to bearing's back pressure |
| Product Size (Height x Diameter) | 16.3 x 8.9 cm (6.4 x 3.5") |
|
Easylube® Original Service Pack
Product Number：ES-150-XXXX-3B Coding Principles： ES Series + Capacity + Grease Cup Specification + Lithium Battery |
Rated Power (Lithium Battery Model / Specification)：
Easylube® P-613B DC 6V × 1500 mAh, UL94-V0 |
| Easylube® Grease Refiller (Grease Specification / Product Name)：
ES-150-1000 High Speed Grease Cup ES-150-1500 Multipurpose Grease Cup ES-150-2000 High Performance Grease Cup ES-150-5000 Food Grade Grease Cup ES-150-0000 DIY Empty Grease Cup Kit |
|
| Hazardous Location Application Specification | File E218441 Class I, Division 2, Groups A, B, C and D |
| CE Certification |
EMC SGS Ref. No.: VTMWH2206000309HEA/2022, TERF2206000807ER RED SGS Ref. No.: VTMWH2206000310HEA/2022 LVD SGS Ref. No.: TESA2206000150ES RoHS ETC Ref. No.: 23-01-QAC-130 |
| Dustproof and Waterproof Grade | IP65 |
